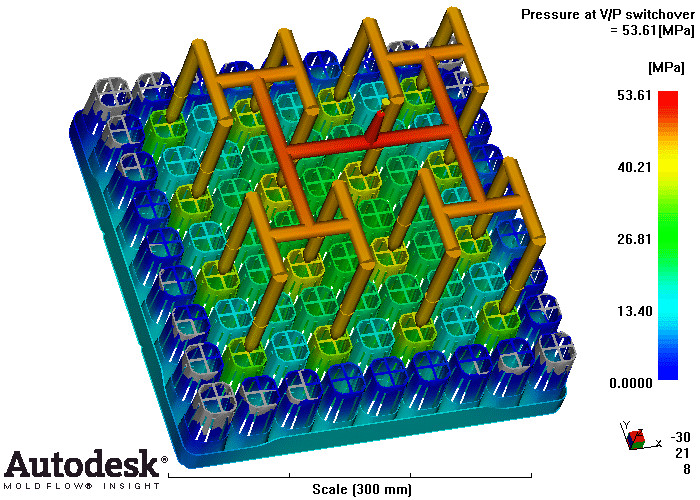

Design is quite important in the success of mold building. A good design will save the cost of mold, extend its life circle and cease maintenance.In MT mold, every mold design will be evaluated by experience mold manufacturing manager, project manager in the evaluation meeting in order to confirm the best solution for mold.In the meeting mold flow analysis, cooling channel, mold structure would be discussed in detail.The 2D&3D design will be sent to customer for confirmation. With customer approval, we will proceed to next step steel cutting.



The working software for design as below:

·Unigraphics CAD/CAM

 ·MoldFlow

 ·Pro/Engineer

 ·SolidWorks



We adopt international standards such as DME, HASCO, RABOURDIN, DAIDO or customized standard required by customer, so the mold can work perfectly in the country or region as planned. After customer provides the drawings in DXF, DWG, PRT, SAT, IGES, STEP, X-T format, our elite designers can turn the product drawing into mold design and CNC machining with professional CAD/CAM/CAE software to secure the most precise and efficient tooling.
